Rounding error in FlashAttention: centered, uncentered, and radial

Yang, Hanyu

doi:10.5281/zenodo.23179058

Rounding error in FlashAttention: centered, uncentered, and radial

A forward error bound for FlashAttention-2, a comparison with two-pass attention, and a measured scale error in the split-KV merge.

DOI 10.5281/zenodo.23179058 · PDF · alphaXiv · illustrated summary · CC BY 4.0 · preprint, 6 Oct 2026 · ORCID 0009-0005-0419-4070

FlashAttention-2 and two-pass attention share the same leading worst-case term, the cast of the weights to bf16 or fp16. FlashAttention-2 is more accurate on peaked attention. The split-KV merge never renormalizes its weights, so rounding the global log-sum-exp scales the whole output: on an NVIDIA L4, an output that should be exactly 1 comes back up to 2.2% off. Renormalizing the merge removes the error.

The idea

Perturb each softmax weight by a factor 1+β_j. The output moves by Σ_j p_j β_j (v_j − y), up to a normalizing factor. So an error that hits a key's weight in the numerator and the normalizer alike costs only the spread of the values around the output. That sorts every rounding in the kernel into three kinds.

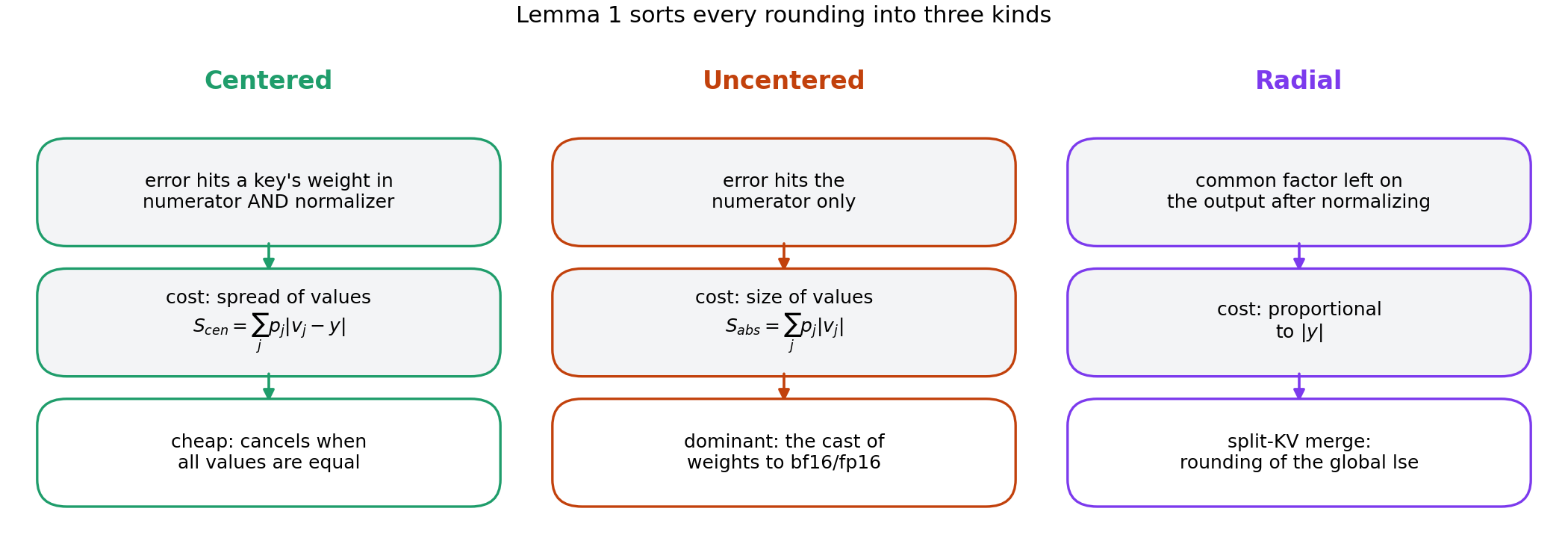

Three panels: centered errors cost the spread of the values, uncentered errors cost their size, radial errors scale the output. — Centered, uncentered and radial errors, and where each one comes from.

Measured on an NVIDIA L4

PyTorch 2.11 FlashAttention-2, fp16, d = 64, τ = 1/8, identical keys and every value equal to 1, so the exact output is 1. Largest |ŷ − 1| in each logit range, in units of 2⁻¹¹:

batch × keys	kernel	[2¹², 2¹⁶)	τs ≥ 2¹⁶
24 × 256	single pass	0	0
24 × 1024	split-KV, T = 4	≤ 1	≤ 24
24 × 2048	split-KV, T = 4	≤ 1	≤ 24
1 × 4096	split-KV, T = 16	≤ 2	≤ 46

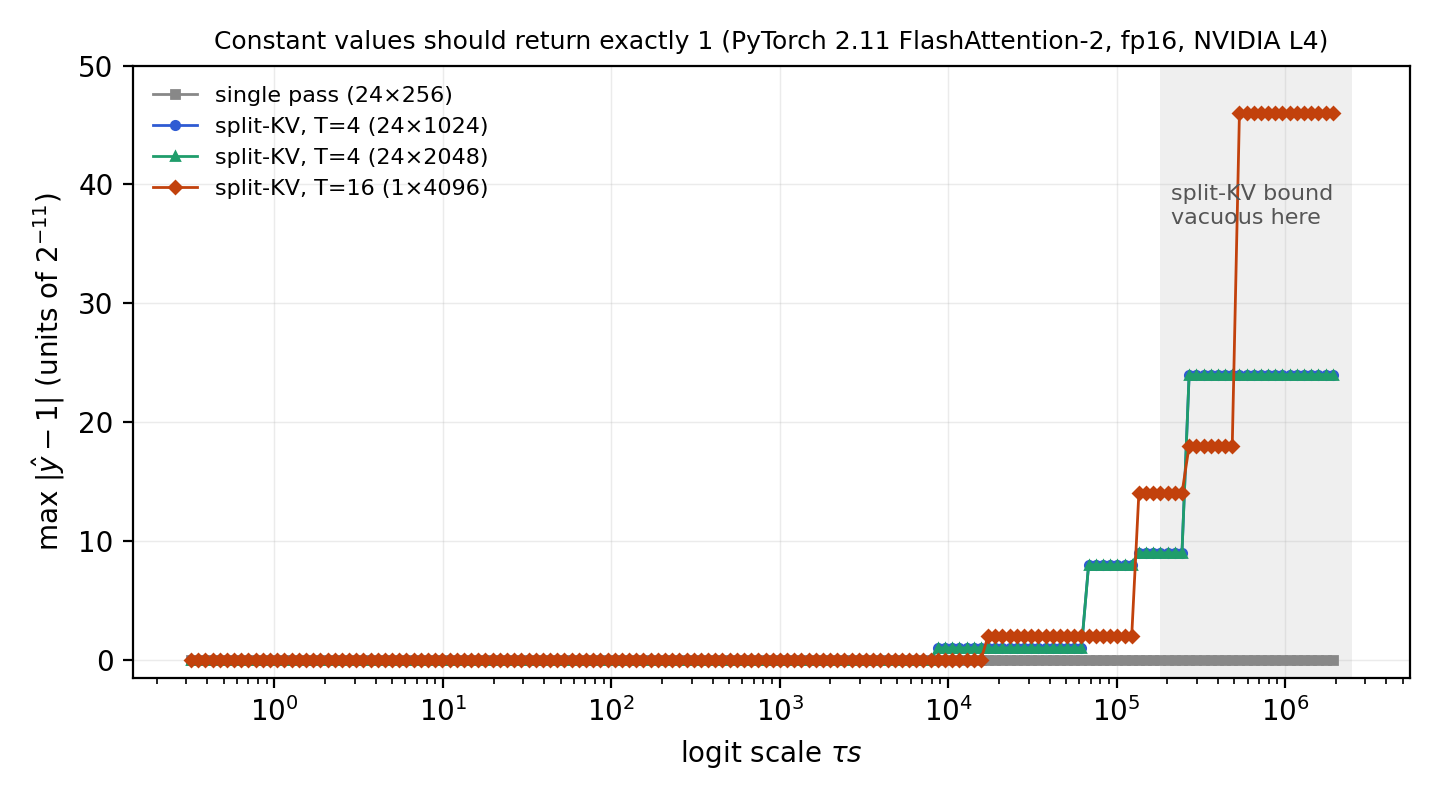

Measured error against logit scale for four shapes: single pass stays at zero, split-KV rises in steps to 24 and 46 units of 2 to the minus 11. — All 160 logit levels per shape. The shaded region is where the split-KV bound is vacuous. The raw 640 measurements are on Zenodo as CSV.

A published bound that fails

The O(u log n) relative-error bound of Hsu et al. (ELSA, Theorem 1) for online-softmax attention is false as stated. It misses a cancellation factor and a logit-size term; the paper gives counterexamples of both kinds, run in their pairwise merge order against an 80-digit reference.

What it does not establish

Whether trained models reach the logit range where the split-KV error survives the final fp16 cast (roughly τ max s in the thousands). That is the open question.
A bound for the largest measured errors: at those logits the split-KV bound is vacuous, and the 2.2% is a measurement.
Exact tensor-core behaviour. The hardware checks model tensor-core accumulation as round-to-nearest fp32.
The GPU comparison of FlashAttention-2 with two-pass used PyTorch's automatic kernel selection, so some runs at n = 4096 may have used split-KV.

The fix itself is not new: FlashAttention-3, FlashAttention-4, FlashInfer, vLLM and xformers already renormalize their merges. The paper is AI-assisted; its disclosure section says how.
